UTILCELL 102 C3-5kg Load Cell

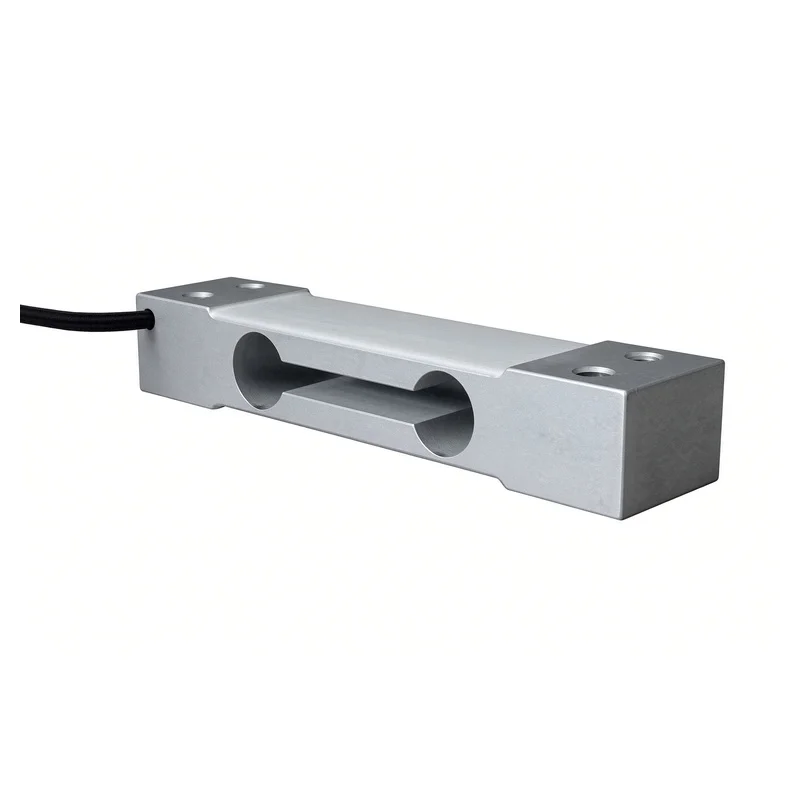

The UTILCELL 102-5kg-C3 Load Cell is a single-point aluminium load cell (double bending beam) with a nominal capacity of 5 kg and OIML class C. One cell supports a platform up to 350 × 350 mm, keeps accuracy with off-centre loads and outputs 2 ± 10% mV/V. Manufacturer: UTILCELL Model: 102 Capacity: 5 kg Accuracy class: C3 (OIML R60, 3000 divisions) vmin at 5 kg: 0.7 g Protection IP66 (EN 60529) Aluminium measuring element, height 22 mm Cable: 4-wire, 3 m (PVC) Typical applications Use 5 kg when gross load (platform + product + placing peaks) stays within 5 kg. This is the lowest capacity in the 102 series. If the total already exceeds 5 kg, take UTILCELL 102-8kg-C3. Direct platforms up to 350 × 350 mm Bench and retail scales Filling scales Replacement of an existing UTILCELL 102-5kg-C3 Specifications — UTILCELL 102-5kg-C3 Parameter Value ManufacturerUTILCELL Model102 Capacity5 kg Accuracy classC3 (OIML R60, 3000 d) Minimum division (vmin)0.7 g Accuracy at 1/3 Ln3000 v Minimum dead load0 % Ln Service load150 % Ln (7.5 kg) Safe load limit200 % Ln (10 kg) Nominal sensitivity (Sn)2 ± 10% mV/V Total error≤ ± 0.017 % Sn Repeatability error≤ ± 0.01 % Sn Temperature effect on zero≤ ± 0.01 % Sn / 5 °C Temperature effect on sensitivity≤ ± 0.006 % Sn / 5 °C Creep error (30 minutes)≤ ± 0.016 % Sn Compensated temperature range−10…+40 °C Operating temperature range−20…+70 °C Nominal input voltage10 V Maximum input voltage15 V Input impedance400 ± 20 Ω Output impedance350 ± 3 Ω Insulation resistance> 5000 MΩ Maximum deflection at Ln0.3–0.5 mm MaterialAluminium measuring element ProtectionIP66 (EN 60529) ConstructionDouble bending beam, single point Maximum platform size350 × 350 mm Body length / height130 mm / 22 mm Mounting holesM6, through holes Hole spacing (length / width)106 mm / 15 mm Cable4-wire, 3 m (PVC), Ø 4 mm Transport weight0.2 kg Series capacities5 / 8 / 10 / 15 / 20 / 30 / 50 kg How to choose 5 kg or 8 kg Size the cell to the full load on the platform: dead load, product and a margin for placing the goods. The cell must cover that maximum. Use UTILCELL 102-5kg-C3 only when that total stays within 5 kg. If it is already close to 5 kg, take UTILCELL 102-8kg-C3. Cable colours ColourFunction Green+ Input (excitation) Black− Input (excitation) Red+ Output (signal) White− Output (signal) ShieldCable screen Ordering information State UTILCELL 102-5kg-C3 Load Cell and confirm the 4-wire, 3 m (PVC) cable. Same series: 5 / 8 / 10 / 15 / 20 / 30 / 50 kg. Factory item numbers are not printed on this datasheet — take them from the current UTILCELL price list.
